Battue Magazine Plate Lower Parts

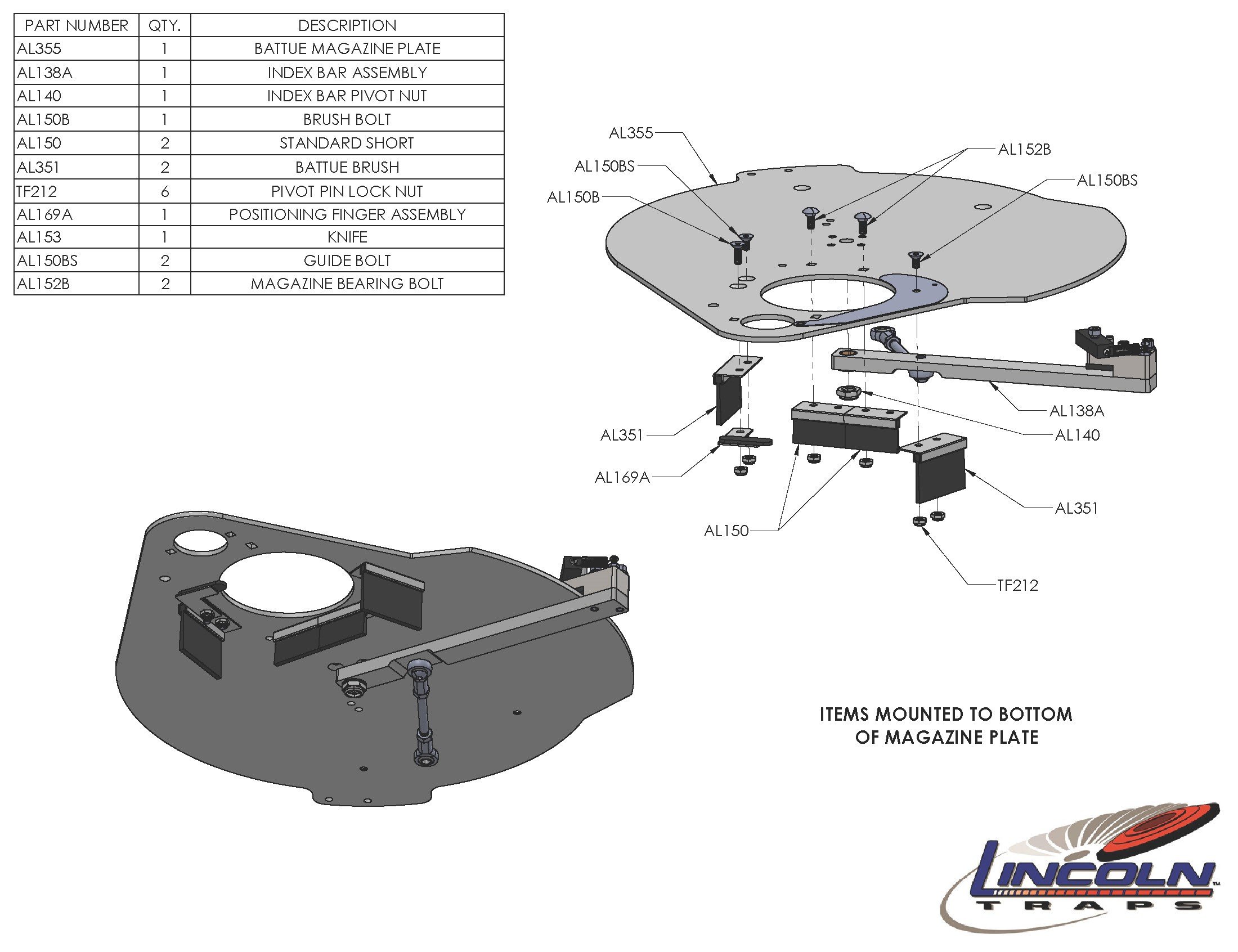

Please use the diagrams below as a reference, parts shown in these diagrams are available below.
The Indexing Block Assembly is used on all Lincoln Infinity Series Automatic traps. This assembly helps move the magazine in order for targets to drop onto the launch plate.
The Battue Brush helps secure the target before it is thrown. This product is compatible with the following models:
AB2002 - Battue
ARB2002 - Rabbue
AS2002SKEET - Skeet
The Index Finger attaches to the indexing block and helps to rotate the magazine. This product includes the Index Finger and the Index Finger Screw. This product is compatible with all Lincoln Infinity Series Automatic traps.
The Top Link Turnbuckle helps move the magazine in order for targets to drop onto the launch plate. This product includes two rod end bearings, two nuts, and a threaded rod. This product is compatible with the following machines:
AS2002 - Sporter
AS2002SKEET - Skeet
A92002 - 90 mm
AB2002 - Battue
ARB2002 - Rabbue
AT2002 - Oscillating Trap
AW2002 - Wobble
AW200290 - Wobble 90 mm
The Standard Index Bar Assembly helps move the magazine in order for targets to drop onto the launch plate. This product includes the Index bar, the top link turnbuckle, and the indexing block assembly. The Standard Index Bar Assembly is compatible with the following machines:
AS2002 - Sporter
AS2002SKEET - Skeet
AB2002 - Battue
ARB2002 - Rabbue
AT2002 - Oscillating Trap
AW2002 - Wobble
The Standard Brush helps guide the target into place before being thrown. Brushes can wear over time and need replacing. This product is compatible with the following models:
AS2002 - Sporter
AS2002SKEET - Skeet
A92002 - 90 mm
AB2002 - Battue
ARB2002 - Rabbue
AT2002 - Oscillating Trap
AW2002 - Wobble
AW200290 - Wobble 90 mm
The Positioning Rubber Finger Assembly aids in the feeding of targets. This part should be replaced if the rubber finger is worn or damaged. This component is compatible with the following machines:
AS2002 - Sporter
AS2002SKEET - Skeet
A92002 - 90 mm
AB2002 - Battue
ARB2002 - Rabbue
AT2002 - Oscillating Trap
AW2002 - Wobble
AW200290 - Wobble 90 mm
The Index Spring attaches to the indexing block and helps to rotate the magazine. This product is compatible with all Lincoln Infinity Series Automatic traps.
The TF203 lock washer is found on all Lincoln Infinity Series Automatic traps.
