Clutch / Arm Replacement Parts

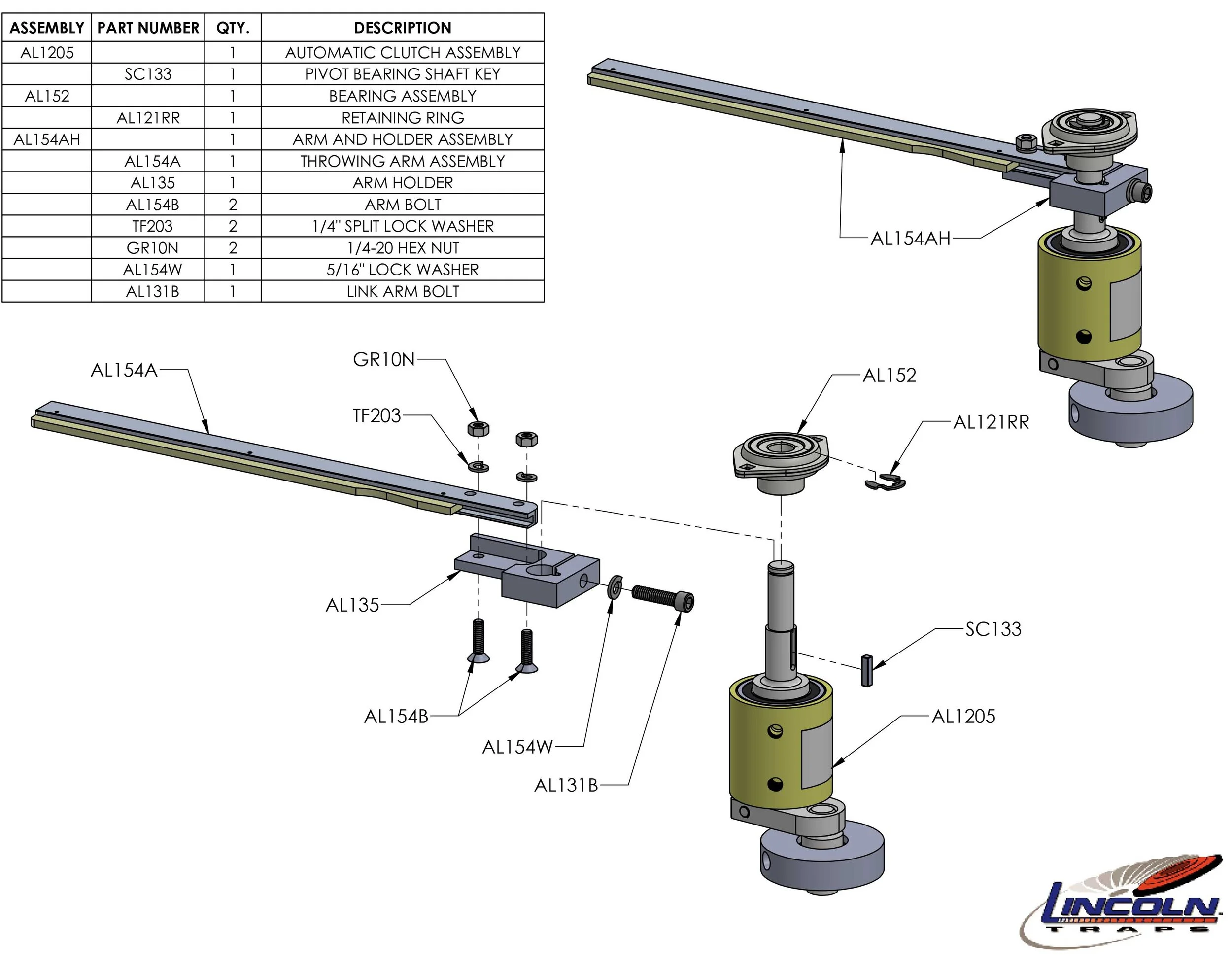

Please use the diagrams below as a reference, parts in these diagrams are available below.
The Automatic Clutch Assembly supports the rotation of the throwing arm and the extension of the mainspring. This assembly includes the clutch housing, collar, motor crank, arm holder, and magazine plate bearing. Find installation instructions here. This assembly is compatible with the following machines:
AS2002 - Sporter
A92002 - 90 mm
AT2002 - Oscillating Trap
AW2002 - Wobble
AW200290 - Wobble 90 mm
This assembly is NOT compatible with the AS2002SKEET machine.
The standard throwing arm is an aluminum rail with a polyurethane strip that makes contact with the target. This part must be replaced when the polyurethane becomes too worn. The standard throwing arm is compatible with the following machines:
AS2002 - Sporter
A92002 - 90 mm
AS2002SKEET - Skeet
AT2002 - Oscillating Trap
AW2002 - Wobble
AW200290 - Wobble 90 mm
The Lincoln Clutch Sticker is compatible with all Lincoln Infinity Series Automatic traps. Revitalize the look of a machine by replacing this sticker.
The GR10N Nut can be found on all Lincoln Infinity Series automatic traps.
The TF203 lock washer is found on all Lincoln Infinity Series Automatic traps.
