Guard Ring Replacement Parts

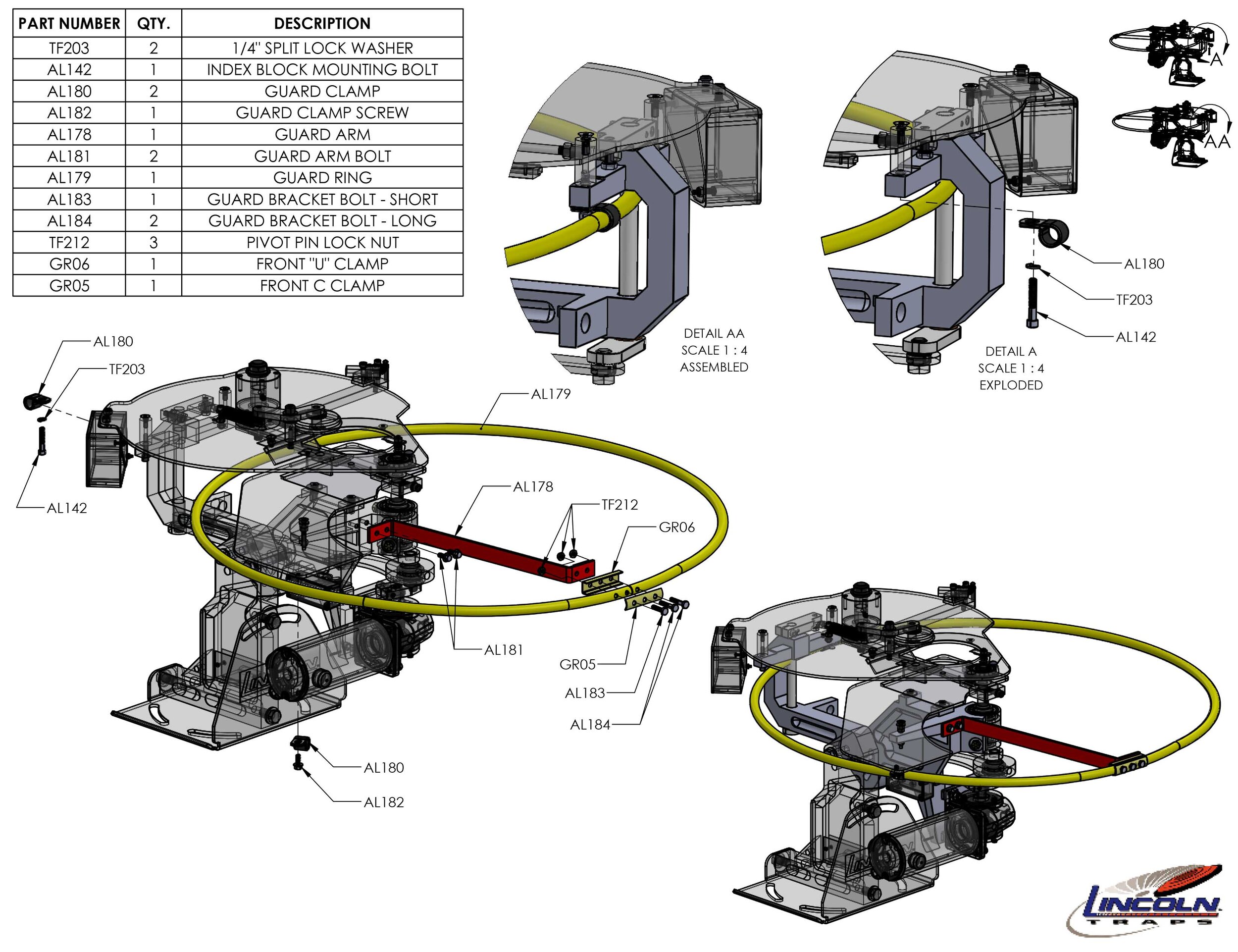

Please use the diagram below as a reference, parts in this diagram are available below.

Please Note: the machine shown in the diagram below may differ from yours.




Automatic Guard Ring 98" - AL179L98
$17.85

All Lincoln Infinity Series Automatic traps include a Guard Ring. There are two different sizes of Guard Ring, a 103" and a 98" circumference. Similarly, there are two different sizes of Guard Arm, a 16" and a 14". The 103" Guard Ring can only be used with the 16" Guard Arm and the 98" Guard Ring can only be used with the 14" Guard Arm. Additionally, traps equipped with a Snow Shield are only compatible with a 103" Guard Ring and 16" Guard Arm.

This product, the 98" Guard Ring, is compatible with the 14" Guard Arm. This product can not be used with a Snow Shield.

Automatic Guard Ring 103" - AL179L103
$17.85

All Lincoln Infinity Series Automatic traps include a Guard Ring. There are two different sizes of Guard Ring, a 103" and a 98" circumference. Similarly, there are two different sizes of Guard Arm, a 16" and a 14". The 103" Guard Ring can only be used with the 16" Guard Arm and the 98" Guard Ring can only be used with the 14" Guard Arm. Additionally, traps equipped with a Snow Shield are only compatible with a 103" Guard Ring and 16" Guard Arm.

This product, the 103" Guard Ring, is compatible with the 16" Guard Arm and can be used with a Snow Shield.

Guard Arm Bracket 14" - AL17814FIS
$15.27

All Lincoln Infinity Series Automatic traps include a Guard Ring. There are two different sizes of Guard Ring, a 103" and a 98" circumference. Similarly, there are two different sizes of Guard Arm, a 16" and a 14". The 103" Guard Ring can only be used with the 16" Guard Arm and the 98" Guard Ring can only be used with the 14" Guard Arm. Additionally, traps equipped with a Snow Shield are only compatible with a 103" Guard Ring and 16" Guard Arm.

This product, the 14" Guard Arm, is compatible with the 98" Guard Ring. This product can not be used with a Snow Shield.


Guard Arm Bracket 16" - AL17816FIS
$17.67

All Lincoln Infinity Series Automatic traps include a Guard Ring. There are two different sizes of Guard Ring, a 103" and a 98" circumference. Similarly, there are two different sizes of Guard Arm, a 16" and a 14". The 103" Guard Ring can only be used with the 16" Guard Arm and the 98" Guard Ring can only be used with the 14" Guard Arm. Additionally, traps equipped with a Snow Shield are only compatible with a 103" Guard Ring and 16" Guard Arm.

This product, the 16" Guard Arm, is compatible with the 103" Guard Ring and can be used with a Snow Shield.

Guard Clamp - AL180
$2.75

The Guard Clamp is used on all Lincoln Infinity Series Automatic traps. There are two of these pieces on each machine that help secure the guard ring.

Guard Clamp Screw - AL182
$0.75

The Guard Clamp Screw is used on all Lincoln Infinity Series Automatic traps. The Guard Clamp Screw secures the Guard Ring at the end of the launch plate via the Guard Clamp. Please be aware that this product is not compatible with the Snow Shield accessory. The Snow Shield Guard Clamp Long Screw must be used if the trap has a Snow Shield.


Small Pivot Pin Lock Nut - TF212
$0.25

This lock nut can be found on all Lincoln Infinity Series Automatic traps.
